  • Model Number : xy300ste

Description

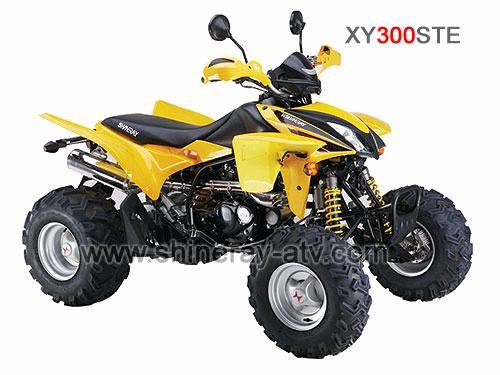

XY300STE
Engine
Engine Type: LC178FMN、single cylinder, E-start, Fan-cooled, manual clutch, chian drive.
Displacement (ml): GN300
Bore X Stroke (mm): 78×61.2
Compression Ratio: 8.9:1
Max. Power (kw/r/min): 16.2/8500
Max. Torque (N.m/r/min): 20/4500
Max. Speed (Km/h): 75
Lubrication: Pressed/Splash
Clutch Type: manual
Ignition: P.E.I
Starting System: Electric
Transmission System: chain drive, rear wheel drive
CHASSIS
Front Suspension: Independent double-wishbone with gas adjustable shocks, featuring adjustable spring preload, rebound and compression damping
Rear Suspension: Pro-Link with single shock featuring adjustable spring preload, rebound and compression damping
Front Brake: hydraulic disc
Rear Brake: Hydraulic disc
Stationary Brake: Mechanical Lock
Front Tire: 22×8-10
Rear Tire: 22×11-10
Battery: 12V 9Ah
DIMENSIONS
L X W X H (mm): 1880×1165×1180
Seat Height (mm): 800
Wheelbase (mm): 1330
Turning Radius (mm): 2800
Min. Ground Clearance (mm): 170
Max. Permissionable Weight (kg): 160
Rider Capacity: 1 Person
Dry. Weigt (kg): 200
Fuel Tank Capacity (L): 11.6
